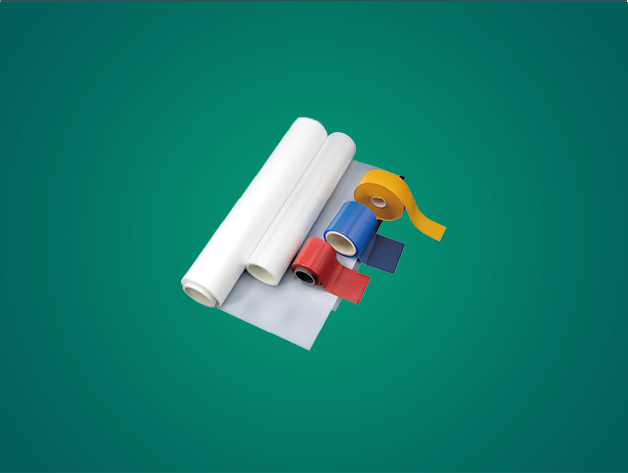

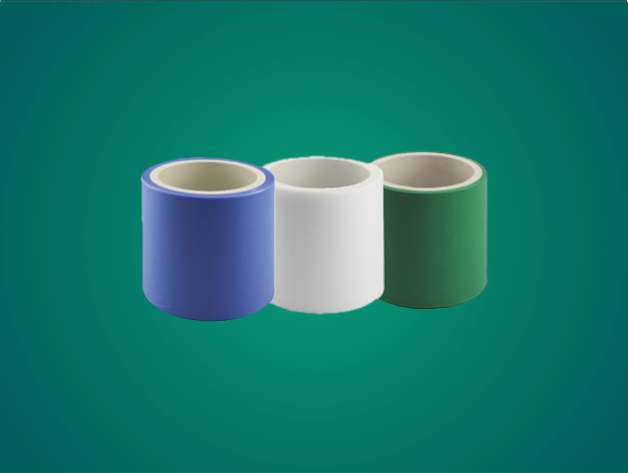

PTFE Film
Product classification:
Polytetrafluoroethylene (PTFE) turning film is an unoriented PTFE film produced by turning a molded blank, as well as a semi oriented and oriented film produced by re rolling the unoriented film.
SFM-1 (directional): used as a capacitor dielectric, etc
SFM-2 (semi directional, non directional): used for wire insulation, etc
SFM-3 (directional, non directional): used as insulation and sealing gasket for electrical instruments, etc
Product features:
1. Low and high temperature resistance (-180C -+260C)
2. Corrosion and climate resistance
3. High lubrication and non adhesion
4. Non toxic
5. Incombustibility
6. Acid resistant shouting (excluding molten alkali metals)
7. Antioxidant properties
Product Usage:
1. Used in various electronic appliances such as wires, cables, battery electrodes, etc
2. It is also used as a gasket seal and lubricating material in various media, as well as an electrical insulation component used at various frequencies.
Product specifications:
| Product classification | Width (mm) | Thickness (mm) |
| Turning film (non directional film) | 5-1300 | 0.03-1.0 |
| Semidefinite membrane | ||
| Directional membrane |
Note: The length can be reprocessed according to customer requirements, please discuss the details separately.
Main technical indicators:
| project | unit | CSFM-1 | CSFM-2 | CSFM-3 | ||
| directional | Semi directional | Non directional | Non directional | Non directional | ||
| tensile strength | MPa | ≥30 | ≥20 | ≥10 | ≥30 | ≥10 |
| elongation at break | % | ≥30 | ≥60 | ≥100 | ≥30 | ≥100 |
| 1MHz dielectric constant | 1.8-2.2 | / | / | 1.8～2.2 | / | |
| DC breakdown voltage intensity (at room temperature) | KV/mm | Average value 200 | 100 | 40 | 60 | 30 |
| Min value 40 | 10 | 4 | / | / | ||
